For IGBT modules with different packages, Bronze Technologies launches a number of plug-and-play drivers suitable for EconoDual?3, EconoPack?+, PrimePack?, IHM e.t.c. This series of products integrates all elements necessary for the complete driver circuitry, and can be applied without external circuitry, which effectively shortens the development period for the users; meanwhile, the highly matched driver parameters can greatly improve the IGBT performance and reliability.
|
Part Number
|
Power Device Voltage（V）
Select
|
Power Device
Select
|
Package
Select
|
Topologies
Select
|
Number of Channels
Select
|
Number of Paralleled Modules
Select
|
Output Power（W）
Select
|
Maximum Output Current（A）
Select
|
Maximum Switching Frequency（kHz）
Select
|
Ambient Temperature（℃）
Select
|
|---|---|---|---|---|---|---|---|---|---|---|
| 4500 | IGBT | IHV | Single switch | 1 | 1 | 3 | 35 | 2 | -40~85 | |
| 3300 | IGBT | IHM | Single switch | 1 | 1 | 6 | 35 | 10 | -40~85 | |
| 3300 | IGBT | PrimePack?3+ | 2 | 1 | 5 | 35 | 10 | -40~85 | ||

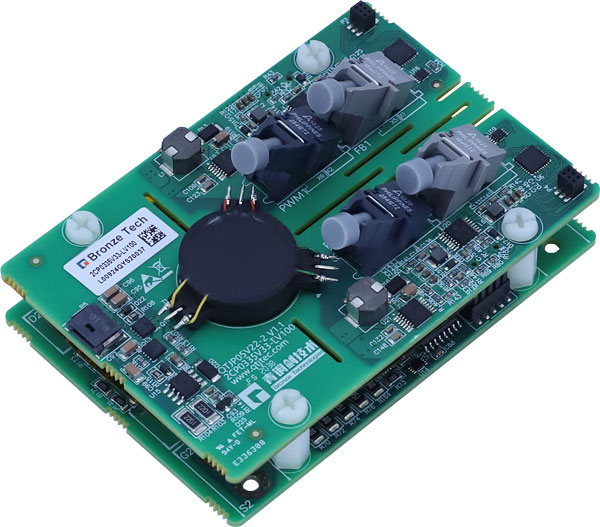

| 3300 | SiC MOSFET | LV100 | 2 | 1 | 3 | 35 | 20 | -40~85 | ||
| 1700 | SiC MOSFET | 62mm | Half-bridge | 2 | 1 | 3 | 15 | 100 | -40~85 | |
| 4500 | IGBT | IHM | 1 | 1 | 6 | 50 | 20 | -40~85 | ||
| 1200 | IGBT | 2 | 4 | 35 | 100 | -40~85 | ||||
| 1200 | IGBT | EconoDual?3 | 2 | 2 | 25 | 200 | -40~85 | |||
| 1200 | IGBT,SiC MOSFET | 62mm | 2 | 2 | 20 | 50 | -40~85 | |||
| 1200 | SiC MOSFET | EconoDual?3 | Various topologies | 2 | 2 | 14 | 40 | -40~125 | ||
| 1700 | SiC MOSFET | EconoDual?3 | Various topologies | 2 | 2 | 14 | 40 | -40~125 | ||
| 1200 | IGBT | EconoDual | 2 | 2 | 4 | 35 | 8 | -40~85 | ||
| 1700 | IGBT | PrimePack | Half-bridge | 2 | 1 | 3 | 20 | 50 | -40~85 | |
| 3300 | IGBT | XHP?3 | 2 | 3 | 35 | 10 | -40~85 | |||
| 1700 | IGBT | PrimePack | 2 | 1 | 3 | 20 | 50 | -40~85 |
