6AB0460Txx-xxxx

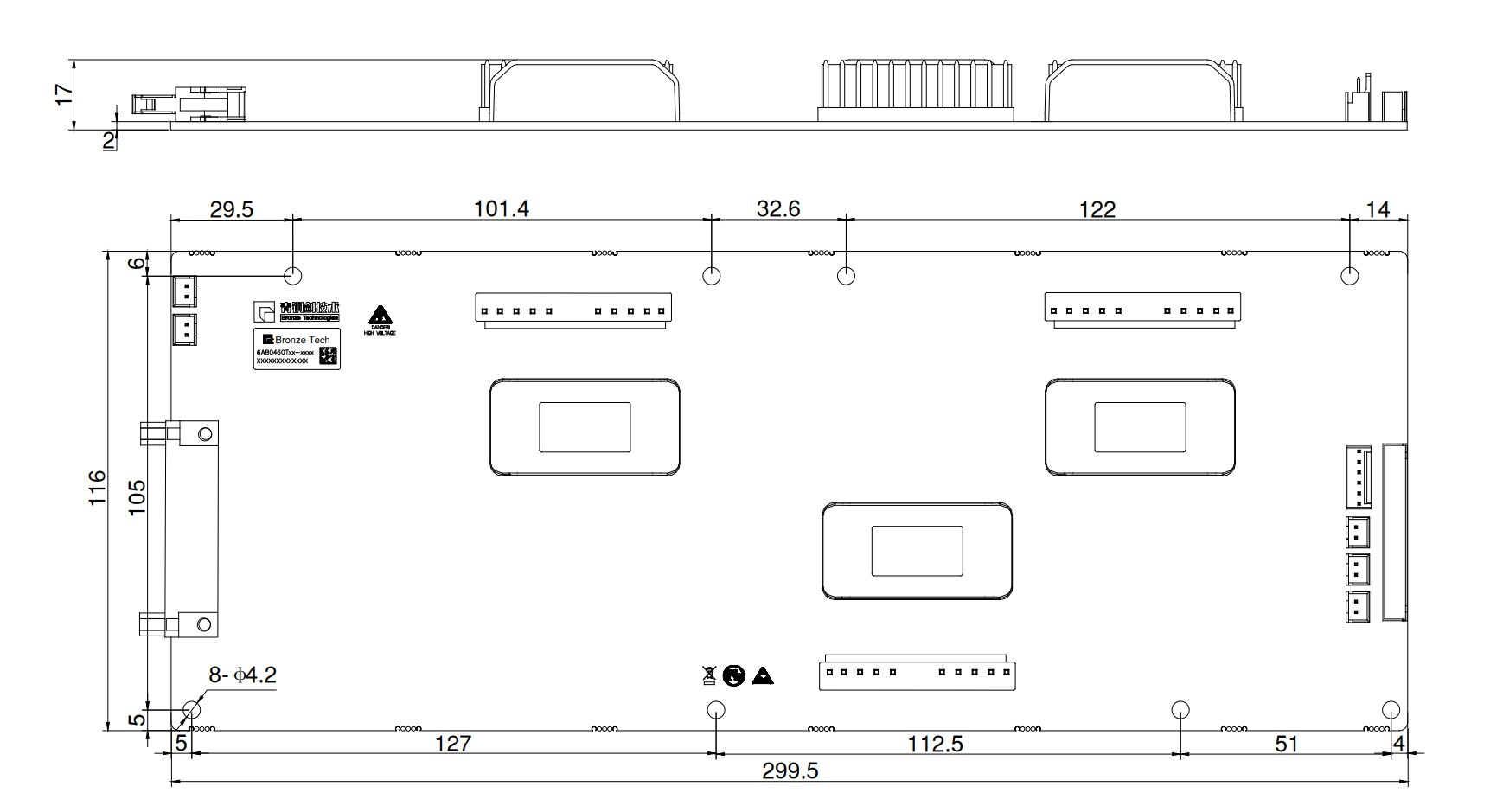

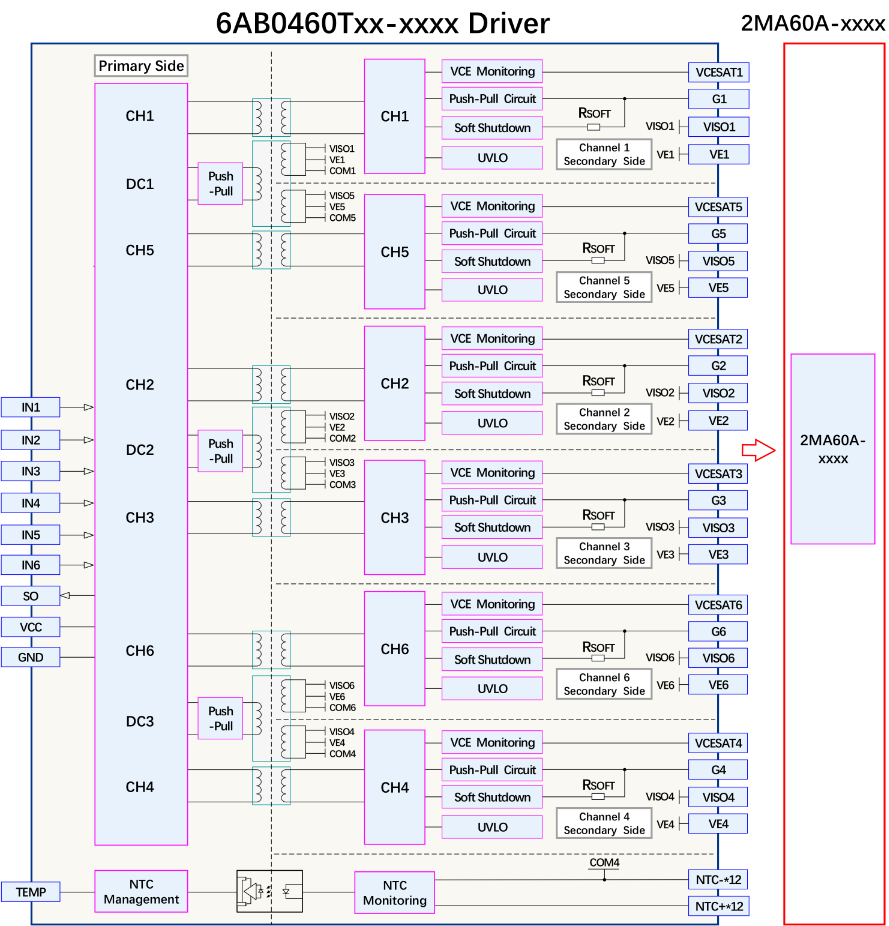

6AB0460Txx-xxxx is a I-type three-level, six-channel, medium power, high isolation voltage, compact, high-reliability driver designed for medium power, high reliability applications based on BronzeTechnologies’ ASIC chip.
6AB0460Txx-xxxx driver is ideal for ANPC and NPC1 I-type three-level topologies constructed with IGBT modules up to1700V. It is compatible with IGBT modules in 62mm, EconoDual?3, PrimePack?3 and other packages. The driving core board is ?xed on the power module case or specially designed ?xed base to work with the driver board.
Features
Six-channel IGBT driver |
Maximum power device voltage: 1700V |
Single-channel driving power: 4W, peak current ±60A |
Power supply input: +15V |
Compatible with multiple IGBT modules: 62mm, EconoDual?3, PrimePack?3 |
Supports ANPC and NPC1 I-type three-level multi-parallel topologies |
Integrated isolated DC/DC power supply |
Integrated primary/secondary power undervoltage lockout |
Integrated PWM interlock function |
Integrated shutdown sequence management |
Integrated VCE short-circuit protection |
Integrated soft shutdown |
Integrated NTC detection |
Optional Features: Fault di?erentiation and intelligent management |
Optional Features: Narrow pulse suppression |
Optional Features: Multi-stage shutdown and switching sequence |
Key parameters
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 5kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -9V |
| Driving Power | 4W | Gate Driving Current | ±60A |
| Power Supply Voltage | 15V | Maximum Supply Current | - |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side insulation Voltage | 6000Vac |
